Function 2: Away Burglar Alarm (Door)-Setup from the Outside, Patented Away Burglar Alarm Setup Outdoor

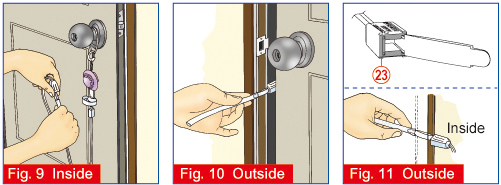

 1. Slip the door knob strap around the inside door handle. Insert the front tip of the closed spring bladesinto the soft sleeve.
¡@s9 into into
2. Stand outside the door s10 and hold the other end of the soft sleeve and make sure the opening endof the plastic handle
¡@s11is against the inside edge of the door frame.

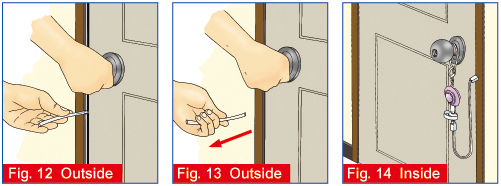

3. Pull the door towards its frame with your other hand (the door is not completely closed yet), so that the closed v-shaped spring
¡@bladestogether with the soft sleeveare clipped between the door and its frame. Before completely closing the door from the
¡@outside
, pull the soft sleeve out of the gap.
¡@Fig12 Fig13

4. After the door is completely closed, the closed spring blades are clipped in between the door and its frame and the burglar alarm
¡@setup is completed.
¡@s14
